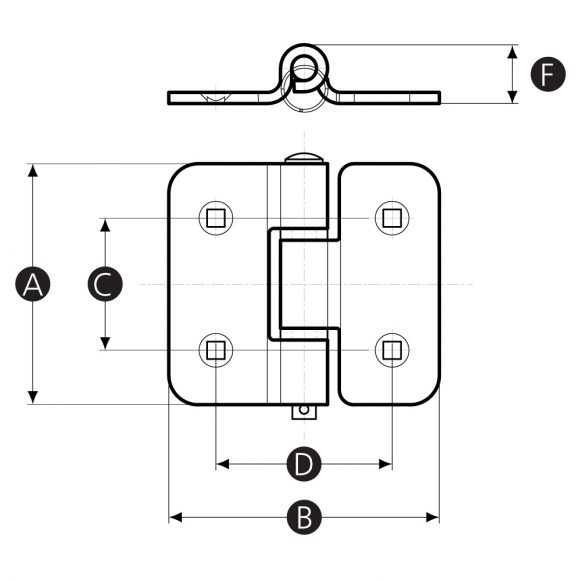

| Part No. | A | B | C | D | F | Square Bore (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15431Q | 82 | 92 | 45 | 60 | 20 | 6 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

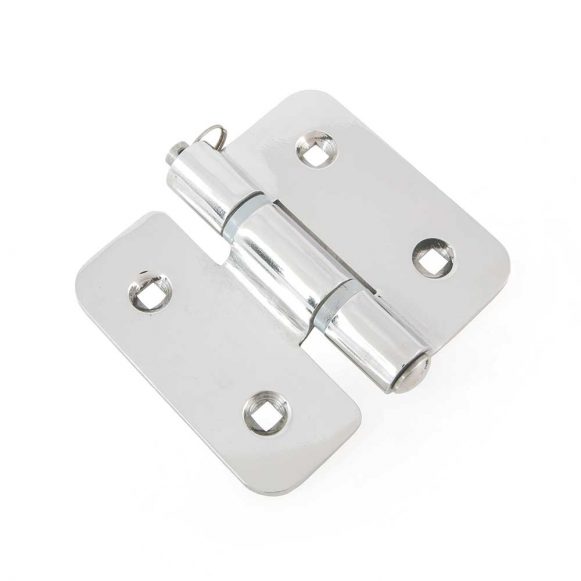

Heavy Duty Stainless Steel Door Hinge & Removable Pin
Description
The Model 04 HI is heavy duty electrolytic polished stainless steel hinge for large doors, panels and hatches. The 304 stainless steel construction is strong, durable and has a high resistance to corrosion.
This hinge features a removable central pin to allow the door or hatch to be quickly removed without disconnecting the hinge leaf. Mounting is with countersunk screws or bolts.
We also offer a similar hinge but with a wider secondary leaf for larger doors.
Material
Stainless steel 304
Finish
Electrolytic polish
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
