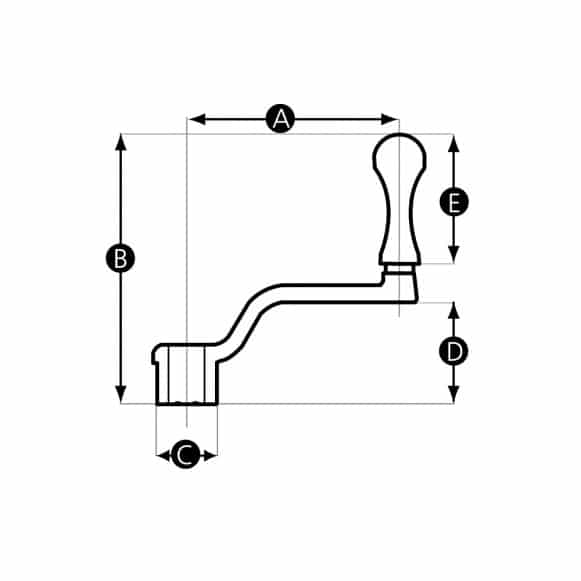

Part No. | A | B | C | D | E | Bore Size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
11797R | 100 | 135 | 28 | 46 | 75 | 12mm SQU | CAD | Stocked | Minimum order quantity is 1 piece | Typical lead time is 2 days | Confirm price & availability |
11800Q | 200 | 200 | 44 | 82 | 95 | 19mm SQU | CAD | Stocked | Minimum order quantity is 1 piece | Typical lead time is 2 days | Confirm price & availability |

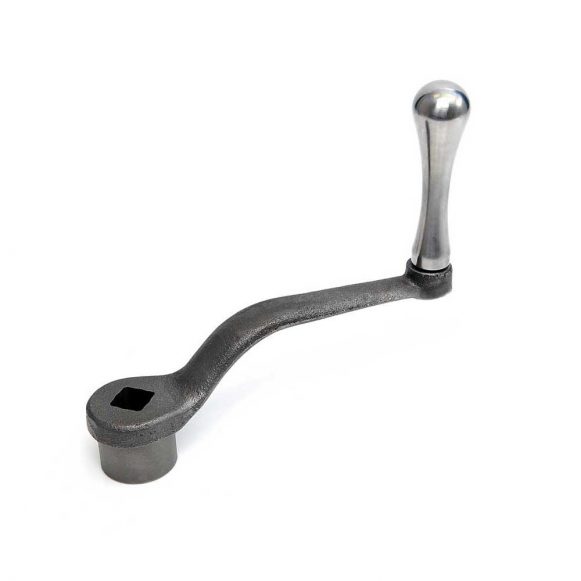

Offset Cast Iron Cranking Handle with Square Hole
Description
These cast iron cranked or crank handles are strong, robust and well suited to a wide range of industrial applications. The offset crank handle provides clearance of obstacles in the path of rotation (such as control knobs and levers). These cranking handles are commonly found on lathes, and drilling and milling machines.
We stock a range of handle sizes; from 100mm up to 200mm and with 12mm to 19mm square bore sizes.
Material
Cast iron crank with polished steel side handle
Standard colour
Cast finish and polished steel
Fixing
Square fixing hole
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
