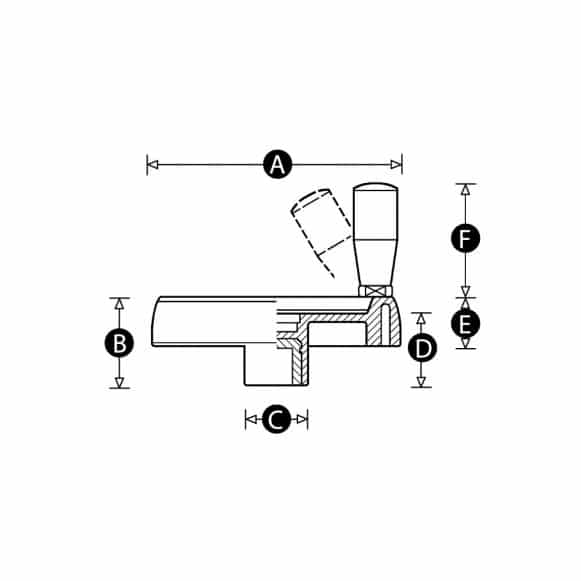

Part No. | A | B | C | D | E | F | Pilot Bore | Maximum Bore | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5453T | 100 | 39 | 30 | 34 | 21 | 55 | 8 | 16 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5454W | 125 | 44 | 36 | 37 | 24 | 76 | 8 | 16 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5455P | 150 | 53 | 38 | 43 | 29 | 90 | 8 | 20 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5456R | 175 | 56 | 40 | 46 | 32 | 98 | 8 | 20 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5457U | 200 | 59 | 44 | 49 | 35 | 98 | 8 | 20 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |

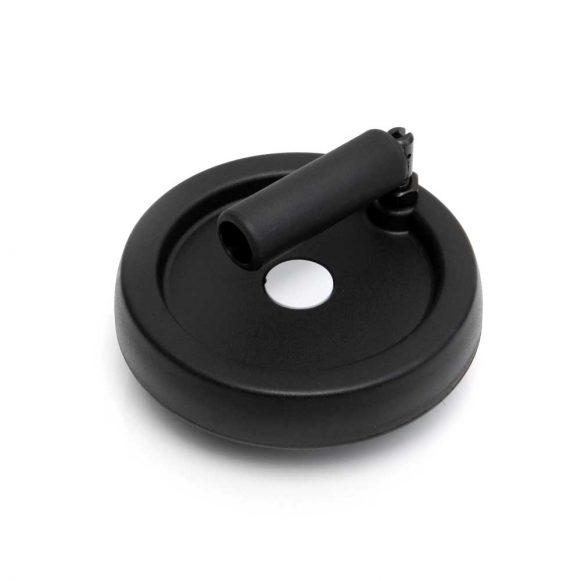

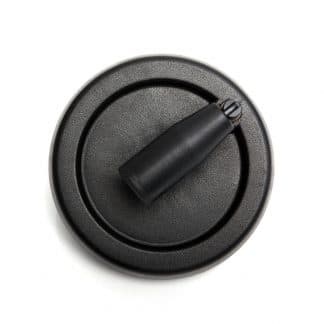

Solid Control Handwheel with Folding Handle
Description
The Model 01FH HW takes our solid control hand wheel and adds a revolving and folding handle. The addition of a revolving handle has the advantage of improving control over speed and force of rotation. The ability to fold the handle when not in use minimises protrusion while not in use.
High impact resistant thermoplastic, a zinc plated steel insert, and the solid, non-spoked construction make this exceptionally strong and durable. These hand wheels are a popular choice on various types of industrial machinery, manufacturing and processing equipment.
This wheel comes with an 8mm pilot bore and allows a maximum bore of between 16mm and 20m.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Insert material
Zinc plated steel
Handle
Revolving folding handle
Download datasheetThis product complies with:
