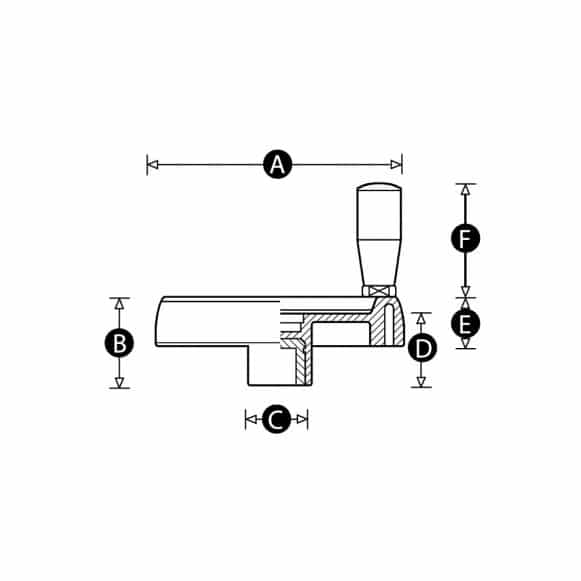

Part No. | A | B | C | D | E | F | Pilot Bore | Maximum Bore | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5448X | 100 | 39 | 30 | 34 | 21 | 55 | 8 | 16 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5449P | 125 | 44 | 36 | 37 | 24 | 66 | 8 | 16 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5450V | 150 | 53 | 38 | 43 | 29 | 76 | 8 | 20 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5451Y | 175 | 56 | 40 | 46 | 32 | 86 | 8 | 20 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5452Q | 200 | 59 | 44 | 49 | 35 | 86 | 8 | 20 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |

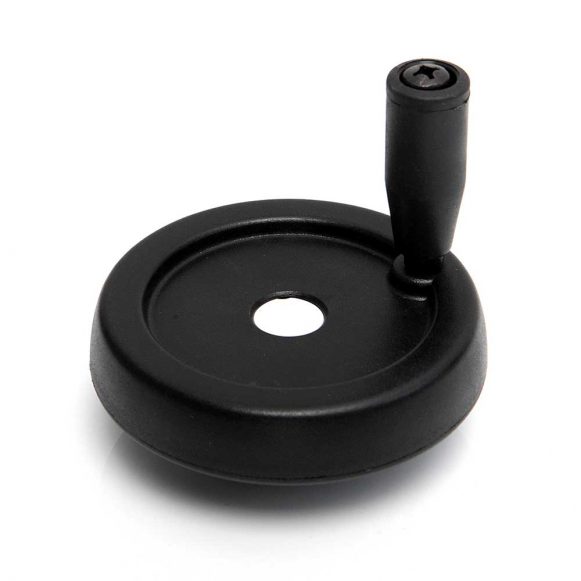

Thermoplastic Solid Control Handwheel with Revolving Handle
Description
The Model 01H HW takes our solid control hand wheel and adds a revolving handle. The addition of a revolving handle has the advantage of improving the control over speed and force of rotation.
High impact resistant thermoplastic, a zinc plated steel insert, and the solid, non-spoked construction make this exceptionally strong and durable. These hand wheels are a popular choice on various types of industrial machinery, manufacturing and processing equipment.
This wheel comes with an 8mm pilot bore and allows a maximum bore of between 16mm and 20mm.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Insert material
Zinc plated steel
Handle
Revolving fixed (non-folding) handle
