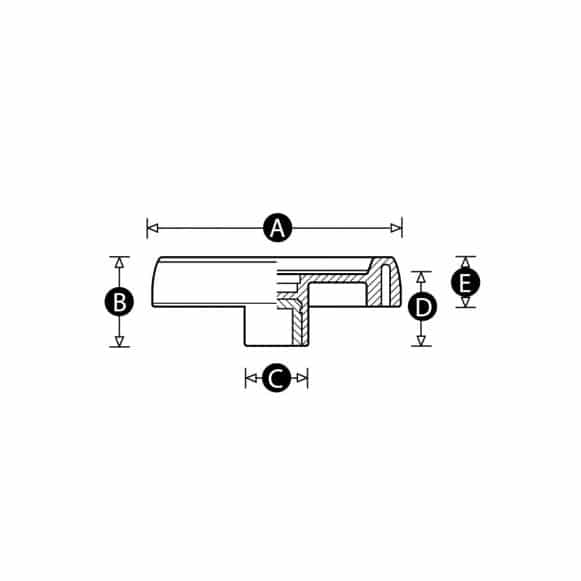

Part No. | A | B | C | D | E | Pilot Bore | Maximum Bore | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|
5443T | 100 | 39 | 30 | 34 | 21 | 8 | 16 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5444W | 125 | 44 | 36 | 37 | 24 | 8 | 16 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5445P | 150 | 53 | 38 | 43 | 29 | 8 | 20 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5446R | 175 | 56 | 40 | 46 | 32 | 8 | 20 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5447U | 200 | 59 | 44 | 49 | 35 | 8 | 20 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |

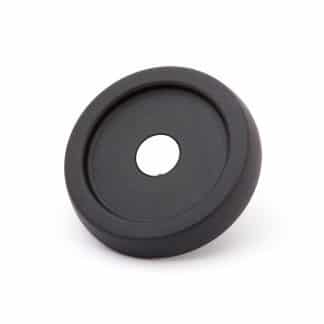

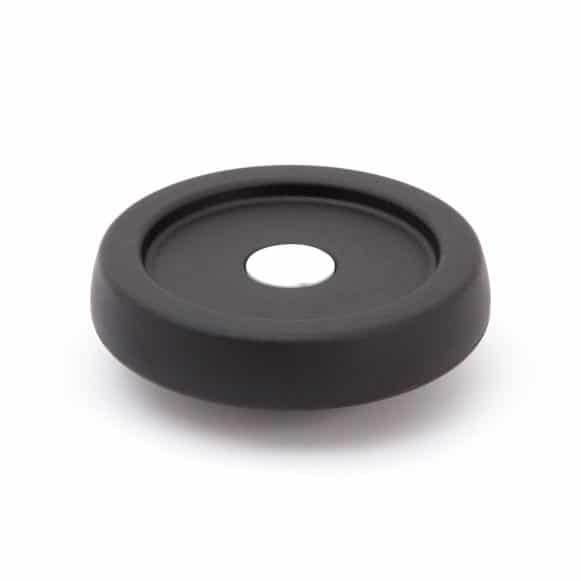

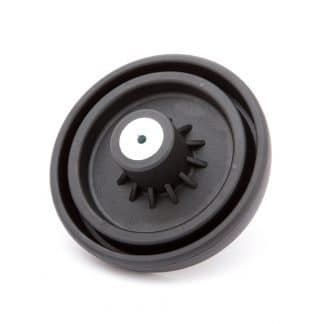

Thermoplastic Solid Control Handwheel
Description
The Model 01 HW is our most basic thermoplastic control handwheel. The combination of high impact resistant thermoplastic, zinc plated steel insert, plus the solid, non-spoked construction and lack of side handle make it strong, durable and easy to clean.
The inclusion of a side handle is generally dictated by ergonomics and available space. A solid control handwheel without a side handle is often specified where fewer rotations and finer adjustment is required. The addition of a side handle gives the option of cranking the wheel – this is useful where greater speed and force of rotation are desired.
Our solid control handwheels are suitable for an enormous range of industrial machinery and equipment, in a varied range of industries including manufacturing, pharmaceutical, chemical and oil & gas.
This wheel comes with an 8mm pilot bore and a maximum bore of between 16mm and 20mm.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Insert material
Zinc plated steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
