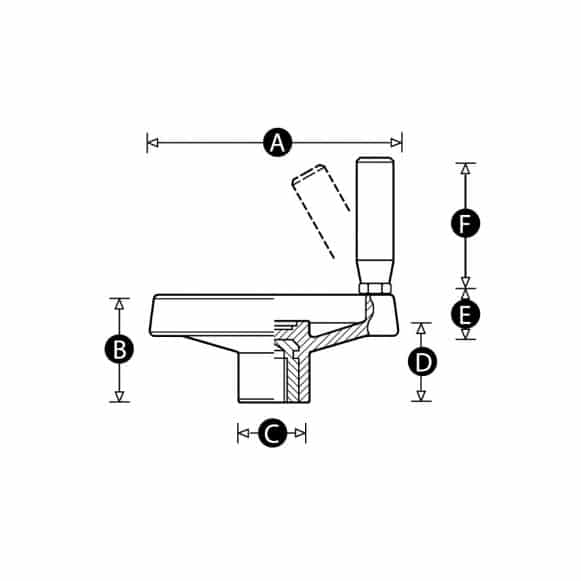

Part No. | A | B | C | D | E | F | Pilot Bore | Maximum Bore | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5274U | 130 | 49 | 31 | 35 | 20 | 76 | 8 | 16 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5275X | 160 | 56 | 40 | 40 | 24 | 76 | 8 | 20 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5276P | 200 | 61 | 50 | 40 | 28 | 76 | 8 | 20 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5277S | 250 | 70 | 56 | 44 | 32 | 96 | 8 | 20 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |

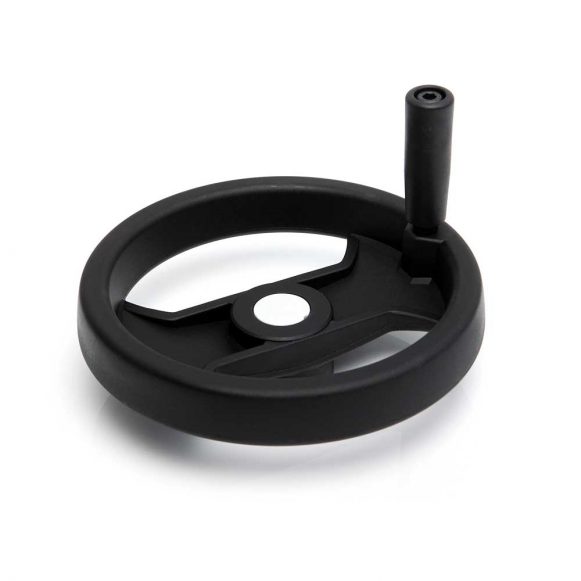

Spoked Control Handwheel with Folding Revolving Handle
Description
Two spokes, an ergonomic wheel profile, and a rotating folding handle all afford our Model 02FH HW exceptional comfort, grip, control and convenience. The folding, rotating handle on this hand wheel minimises protrusion which aids safety and work areas with limited space. To prevent all protrusion while not in use we recommend a handwheel with a flush folding handle.
Our spoked control hand wheels are well suited to moving the axis of a machine, closing a vice, or for small or large adjustments on manual machine tools, drills, drilling machines, packaging machines, mechanical saws, bandsaws, packaging machines and numerous types of catering equipment.
This control wheel’s thermoplastic body and zinc plated steel insert are strong, durable and oil & grease resistant.
We offer a comprehensive range of wheel diameters; ranging from 100mm up to 250mm. All handwheels are supplied with an 8mm pilot bore and will accommodate either 16mm or 20mm maximum bore.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Insert material
Zinc plated steel
Handle
Revolving folding handle
Download datasheetThis product complies with:
