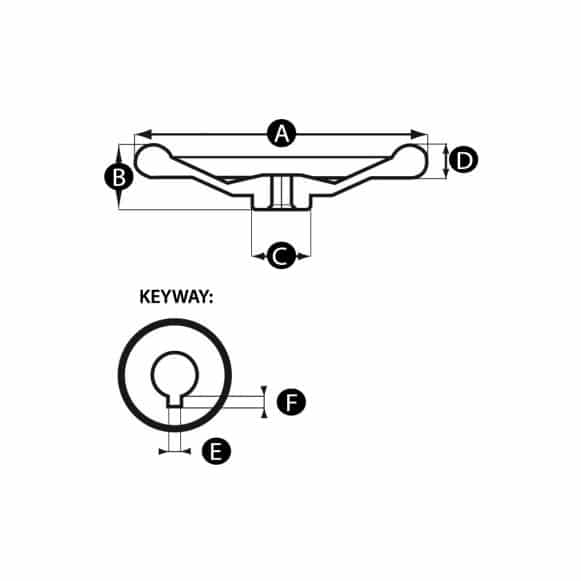

Part No. | A | B | C | D | E | F | Bore diameter (mm) | Number of spokes | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
11838S | 200 | 46 | 40 | 22 | 5 | 2.4 | 14 | 4 | CAD | Stocked | Minimum order is 1 pieces | Typical lead time is 2 days | Confirm price & availability |

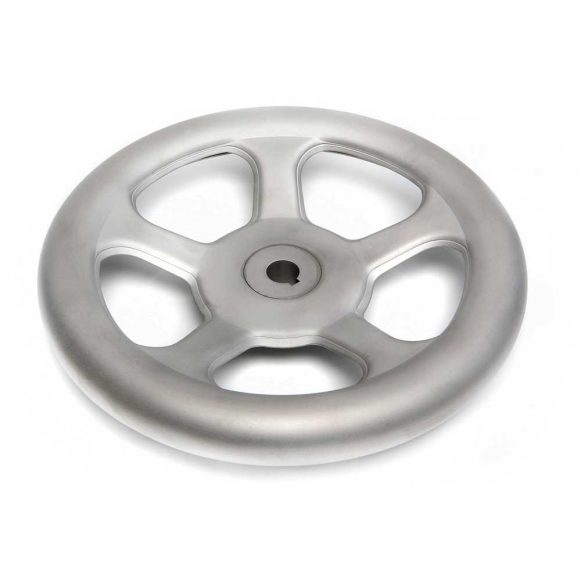

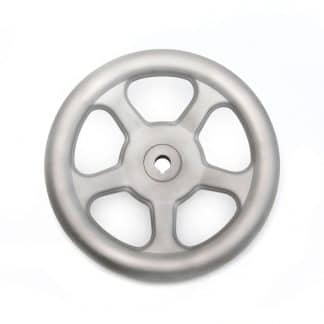

Spoked Stainless Steel Control Handwheel
Description
Our Model 03SS HW is a heavy duty, pressed stainless steel spoked handwheel that has been developed specifically for heavy industry and environments that require significant resistance to corrosion, oil, grease and moisture. These stainless steel hand wheels are exceptionally strong and durable – ideal for use on tools, machinery and equipment in industries such as oil & gas, pharmaceuticals, chemical and manufacturing.
These hand wheels are supplied with a stainless steel central hub with machined bore and keyway.
Our Model 03S HW is a more cost effective alternative but is not so resistant to corrosion.
Material
Pressed stainless steel
Finish
Matt
Standard colour
Natural
Insert/hub
Stainless steel central hub with machined bore and keyway.
Options
Special bore sizes available (MOQs apply).
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65Related products
-
