| Part No. | A | B | C | D | E | F | Bore diameter (mm) | Number of spokes | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11842Y | 200 | 46 | 40 | 22 | 5 | 2.4 | 14 | 4 | CAD | Stocked | Minimum order is 1 piece | Typical lead time is 2 days | Confirm price & availability |
| 11843U | 250 | 52 | 45 | 30 | 5 | 2.5 | 17 | 5 | CAD | Stocked | Minimum order is 1 piece | Typical lead time is 2 days | Confirm price & availability |

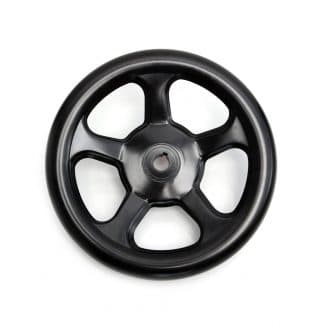

Spoked Steel Control Handwheel
Description
Our Model 03S HW is a heavy duty, pressed steel spoked handwheel that has been developed specifically for heavy industry. These steel hand wheels are exceptionally strong and durable – ideal for use on tools, machinery and equipment in industries such as oil & gas, pharmaceuticals, chemical and manufacturing.
These hand wheels are painted in a tough, black finish and supplied with a steel central hub with machined bore and keyway.
For greater corrosion resistance, see our stainless steel pressed hand wheel.
Material
Pressed steel
Finish
Matt
Standard colour
Black
Insert/hub
Steel central hub with machined bore and keyway.
Options
Special bore sizes available (MOQs apply).
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
