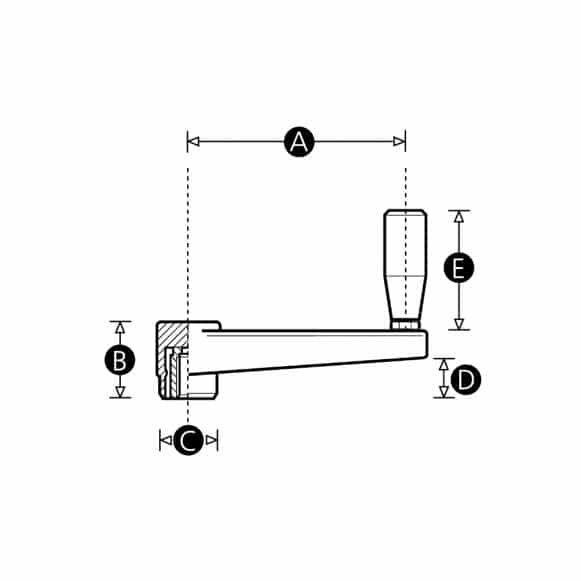

Part No. | A | B | C | D | E | Thread size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
6709T | 65 | 30 | 22 | 17 | 52 | M8 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
7611T | 65 | 30 | 22 | 17 | 52 | M10 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
7610X | 65 | 30 | 22 | 17 | 52 | M12 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
6710P | 80 | 33 | 26 | 19 | 52 | M8 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
6741X | 80 | 33 | 26 | 19 | 52 | M10 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
7609Q | 80 | 33 | 26 | 19 | 52 | M12 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
6711W | 110 | 39 | 29 | 25 | 62 | M10 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
7612P | 110 | 39 | 29 | 25 | 62 | M12 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
9446Q | 110 | 39 | 29 | 25 | 62 | M14 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
6712S | 140 | 49 | 35 | 33 | 72 | M12 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
9447X | 140 | 49 | 35 | 33 | 72 | M14 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
7608U | 140 | 49 | 35 | 33 | 72 | M16 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
6713Z | 185 | 55 | 40 | 40 | 82 | M12 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
9850R | 185 | 55 | 40 | 40 | 82 | M14 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
7607Y | 185 | 55 | 40 | 40 | 82 | M16 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |

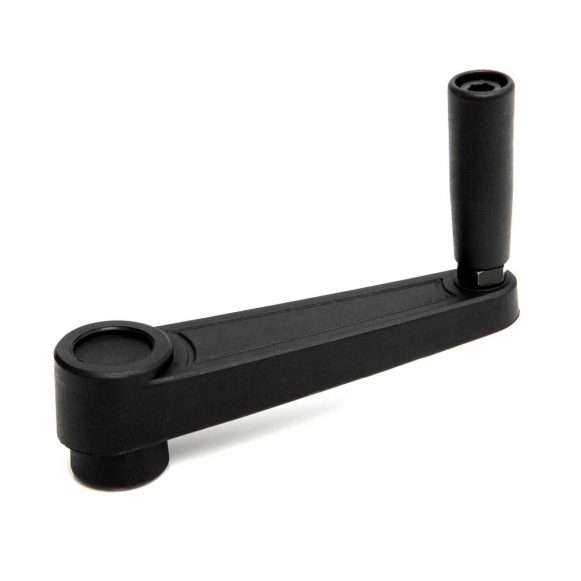

Thermoplastic Crank with Non-Folding Handle
Description
Our Model 07 CR cranking handles are designed for efficient adjustment on various types of machines and equipment.
Thanks to a high impact resistant thermoplastic and machined brass inserts, these handles are strong, robust and resistant to solvents, oils, grease and other chemical agents. The modern, ergonomic design ensures they give excellent control and remain comfortable in use.
We offer a wide range of handle sizes from 65mm to 110mm and threads from M8 up to M16.
We also offer a cranking handle with folding side handle and an indexed cranking handle with folding side handle.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Female insert material
Brass
Handle
Non-folding revolving side handle
Download datasheetThis product complies with:
