Model 09 CR

Thermoplastic Cranking Handle with Folding Side Handle

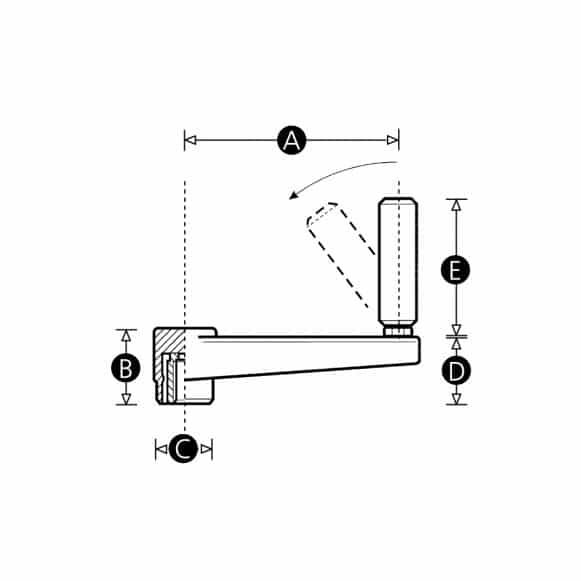

Cranking handle with folding and revolving side handle - technical drawing

Description

Our Model 09 CR plastic crank handle features a folding, revolving side handle. When not in use, the handle can be neatly folded away, saving space and improving safety.

High impact resistant thermoplastic handle and brass inserts ensures durability and resistance to solvents, oils, grease and other chemical agents.

We offer a wide range of handle sizes from 65mm to 185mm and threads from M8 up to M16.

We also offer a cranking handle with a non-folding side handle and an indexed cranking handle with folding side handle.

Material

High impact resistant thermoplastic

Standard colour

Black

Finish

Matt

Female insert material

Brass

Side handle

Folding and revolving side handle

Download datasheet

This product complies with:

RoHS REACH Conflict Minerals California Prop 65
