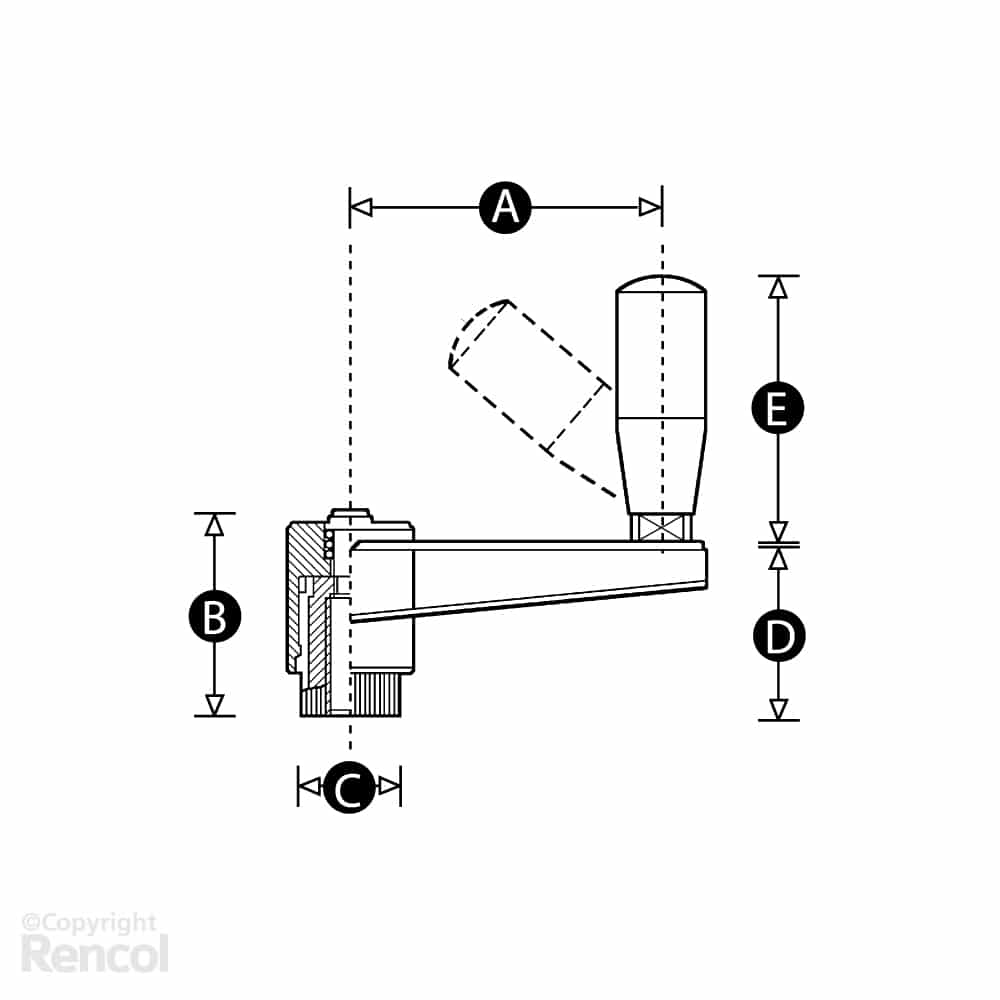

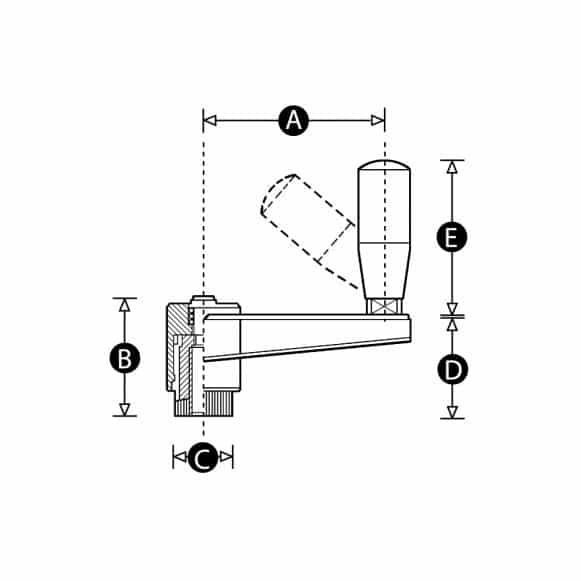

Part No. | A | B | C | D | E | Thread size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
5459P | 65 | 45 | 27 | 36 | 52 | M8 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5460V | 65 | 45 | 27 | 36 | 52 | M10 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5461Y | 65 | 45 | 27 | 36 | 52 | M12 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5464W | 80 | 52 | 34 | 46 | 52 | M10 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5462Q | 80 | 52 | 34 | 46 | 52 | M12 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5463T | 80 | 52 | 34 | 46 | 52 | M14 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5465P | 110 | 52 | 34 | 47 | 62 | M12 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5466R | 110 | 52 | 34 | 47 | 62 | M14 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |
5467U | 110 | 52 | 34 | 47 | 62 | M16 | CAD | Made to order | 10 | Typical lead time is 4-6 weeks | Confirm price & availability |

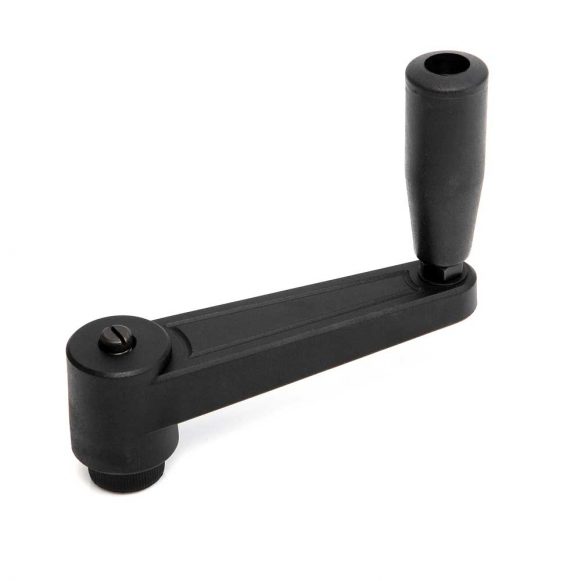

Thermoplastic Index Cranking Handle with Folding Side Handle
Description
Our Model 08 CR cranking handles are designed for efficient & ergonomic adjustment on a wide range of machines and equipment.
Thanks to a high impact resistant thermoplastic and machined brass inserts, these handles are strong, robust and resistant to solvents, oils, grease and other chemical agents. The ergonomic design and integral indexing mechanism ensure a high level of control and comfort.
We offer a wide range of handle sizes from 65mm to 185mm and threads from M8 up to M16.
We also offer a cranking handle with a non-folding side handle and a cranking handle with folding side handle.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Female insert material
Brass
Side handle
Folding and revolving side handle
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
