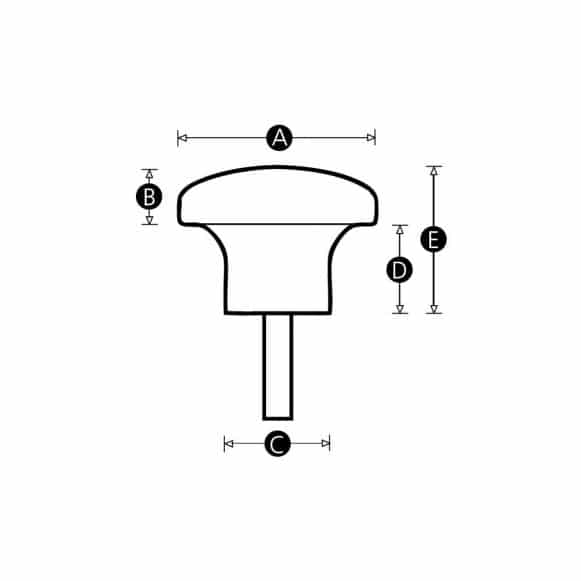

| Part No. | A | B | C | D | E | Thread size | Thread length (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11194U | 22 | 7 | 12 | 12 | 19 | M5 | 10 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 12 Weeks | Confirm price & availability |
| 11195Q | 22 | 7 | 12 | 12 | 19 | M6 | 15 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 12 Weeks | Confirm price & availability |
| 11197T | 27 | 7 | 14 | 13 | 20 | M6 | 15 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 12 Weeks | Confirm price & availability |
| 11198P | 27 | 7 | 14 | 13 | 20 | M8 | 25 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 12 Weeks | Confirm price & availability |
| 11199W | 32 | 8 | 15 | 15 | 23 | M8 | 25 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 12 Weeks | Confirm price & availability |
| 11201Z | 37 | 8 | 18 | 17 | 25 | M8 | 25 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 12 Weeks | Confirm price & availability |
| 11202V | 37 | 8 | 18 | 17 | 25 | M10 | 30 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 12 Weeks | Confirm price & availability |

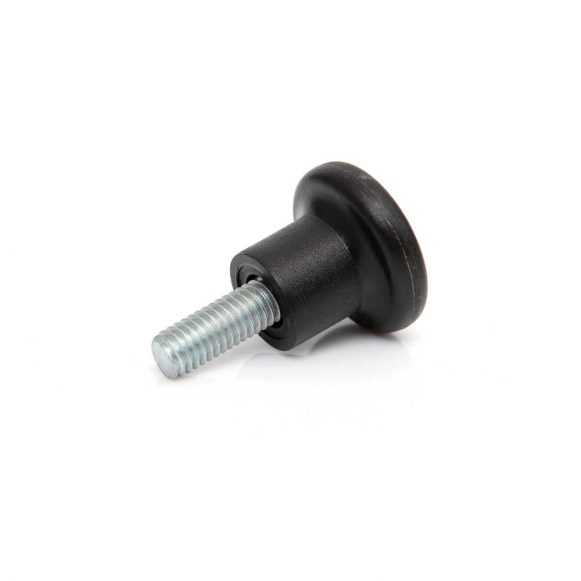

Male Threaded Button Knob
Description
Our Model 21F PK comprises a high impact resistant thermoplastic button shaped knob and zinc plated steel male thread. Button knobs are typically used where a pull or push movement is required. The button shape is particularly comfortable where a two finger and thumb grip is most ergonomic.
The matt finish, thermoplastic material is strong, durable and resistant to oils and solvents commonly found in industrial settings.
We also manufacture this button knob with a female thread and self-fixing moulded bore.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Male thread material
Zinc plated steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
