Model 02F PK

Female Threaded Lobe Knob

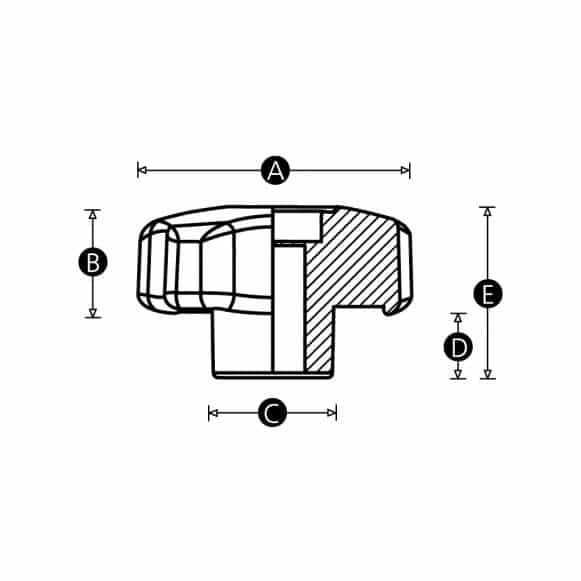

plastic lobe knob technical drawing

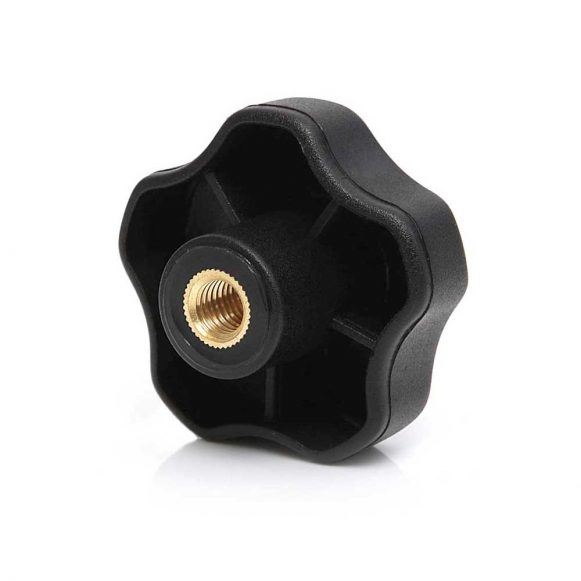

Model 02F PK - Female Threaded Lobe Knob

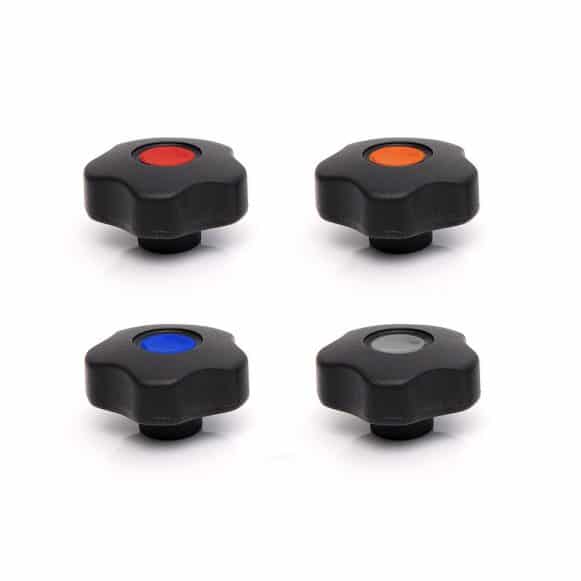

Plastic lobe knobs with coloured caps
Model 02F PK - Female Threaded Lobe Knob
Plastic lobe knobs with coloured caps

Description

The Model 02F PK features a high strength construction, durable material, comfortable shape, and numerous knob and thread size combinations to suit every application – no wonder it is our most popular clamping lobe knob.

We offer three thread materials to suit a wide range of applications; brass, zinc plated steel and stainless steel.

Available with coloured caps to enable colour coding with your machine or equipment and to improve usability, visibility and safety. Choose from any RAL colour, subject to minimum order quantities.

We also manufacture this item with a male threaded stud or through thread (or blind hole).

Material

High impact resistant thermoplastic

Standard colour

Black

Finish

Matt

Female insert material

Brass, zinc plated steel or stainless steel

Cap colours

Available with caps in many different colours (MOQs apply).

Download datasheet

This product complies with:

RoHS REACH Conflict Minerals California Prop 65
Part No.ABCDEThread sizeMaterialInsert MaterialDownload CADStocked statusM.O.Q.Typical lead timePrice & availability
10820U281614925M5NylonBrassCADMade to orderMinimum order 500 piecesTypical lead time is 16 weeksConfirm price & availability
10823T281614925M6NylonBrassCADMade to orderMinimum order 500 piecesTypical lead time is 16 weeksConfirm price & availability
14300T281614925M6PolypropyleneZinc plated steelCADStockedMinimum order 10 piecesTypical lead time is 2 daysConfirm price & availability
14320Q281614925M6PolypropyleneStainless steelCADStockedMinimum order 10 piecesTypical lead time is 2 daysConfirm price & availability
10831U4017181229M6NylonBrassCADMade to orderMinimum order 500 piecesTypical lead time is 16 weeksConfirm price & availability
14301P4017181229M8PolypropyleneZinc plated steelCADStockedMinimum order 10 piecesTypical lead time is 2 daysConfirm price & availability
10834T4017181229M8NylonBrassCADMade to orderMinimum order 500 piecesTypical lead time is 16 weeksConfirm price & availability
10842U5019211231M6NylonBrassCADMade to orderMinimum order 500 piecesTypical lead time is 16 weeksConfirm price & availability
14321X4017181229M8PolypropyleneStainless steelCADStockedMinimum order 10 piecesTypical lead time is 2 daysConfirm price & availability
10845T5019211231M8NylonBrassCADMade to orderMinimum order 500 piecesTypical lead time is 16 weeksConfirm price & availability
14302W5019211231M8PolypropyleneZinc plated steelCADStockedMinimum order 10 piecesTypical lead time is 2 daysConfirm price & availability
14322T5019211231M8PolypropyleneStainless steelCADStockedMinimum order 10 piecesTypical lead time is 2 daysConfirm price & availability
11120T5019211231M10NylonBrassCADMade to orderMinimum order 500 piecesTypical lead time is 16 weeksConfirm price & availability
14303S5019211231M10PolypropyleneZinc plated steelCADStockedMinimum order 10 piecesTypical lead time is 2 daysConfirm price & availability
14323P5019211231M10PolypropyleneStainless steelCADStockedMinimum order 10 piecesTypical lead time is 2 daysConfirm price & availability
10853U6021231334M8NylonBrassCADMade to orderMinimum order 500 piecesTypical lead time is 16 weeksConfirm price & availability
10856T6021231334M10NylonBrassCADMade to orderMinimum order 500 piecesTypical lead time is 16 weeksConfirm price & availability
14304Z6021231334M10PolypropyleneZinc plated steelCADStockedMinimum order 10 piecesTypical lead time is 2 daysConfirm price & availability
14324W6021231334M10PolypropyleneStainless steelCADStockedMinimum order 10 piecesTypical lead time is 2 daysConfirm price & availability
11121P6021231334M12NylonBrassCADMade to orderMinimum order 500 piecesTypical lead time is 16 weeksConfirm price & availability
14305V6021231334M12PolypropyleneZinc plated steelCADStockedMinimum order 10 piecesTypical lead time is 2 daysConfirm price & availability
14325S6021231334M12PolypropyleneStainless steelCADStockedMinimum order 10 piecesTypical lead time is 2 daysConfirm price & availability
