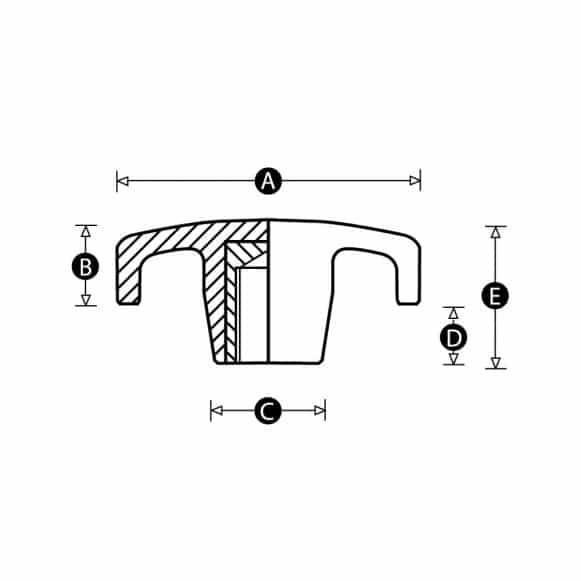

| Part No. | A | B | C | D | E | Thread size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9577U | 32 | 11 | 15 | 9 | 20 | M5 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 9245R | 32 | 11 | 15 | 9 | 20 | M6 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 9243Z | 44 | 11 | 17 | 10 | 21 | M6 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 9242S | 44 | 11 | 17 | 10 | 21 | M8 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 9240P | 57 | 15 | 20 | 11 | 26 | M8 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 9239T | 57 | 15 | 20 | 11 | 26 | M10 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |

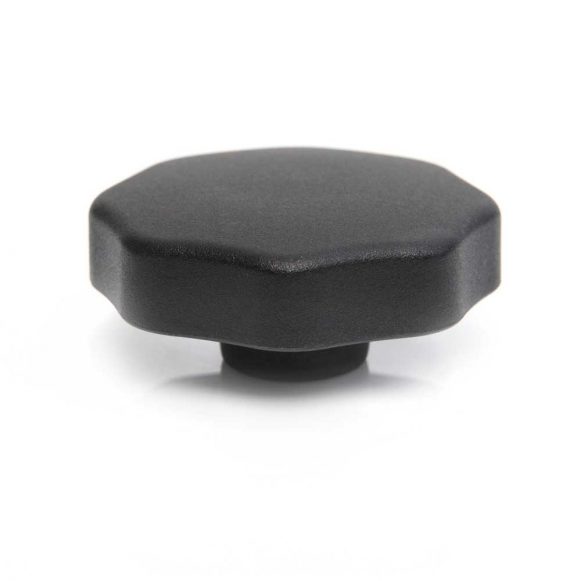

Low Profile Female Threaded Lobe Knob
Description
Our Model 08F PK comprises a matt black high impact resistant thermoplastic knob and brass threaded insert. These lobe knobs have a low, flat profile and minimal lobe size. They are particularly suited to be mounted vertically or at 90 degrees for minimal protrusion into the work space.
We also manufacture this item with a zinc plated steel male thread.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Female insert material
Brass
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
