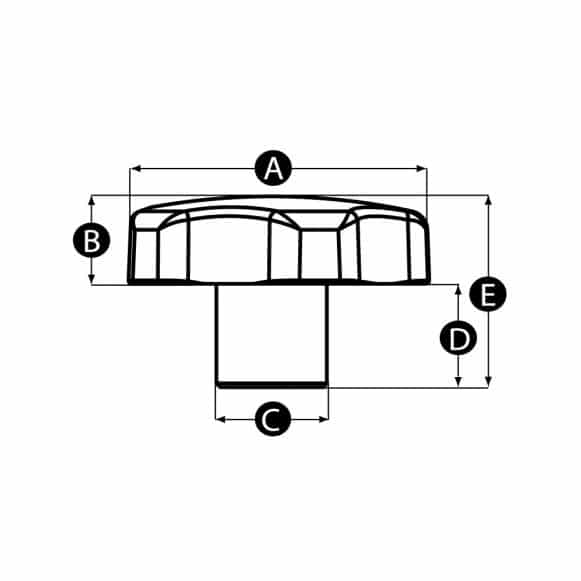

| Part No. | A | B | C | D | E | Thread size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12699R | 40 | 12 | 14 | 12 | 24 | M8 | CAD | Stocked | Minimum order 1 piece | Typical lead time is 2 days | Confirm price & availability |
| 12700Y | 50 | 14 | 18 | 18 | 31 | M10 | CAD | Stocked | Minimum order 1 piece | Typical lead time is 2 days | Confirm price & availability |
| 12701U | 60 | 18 | 20 | 21 | 39 | M12 | CAD | Stocked | Minimum order 1 piece | Typical lead time is 2 days | Confirm price & availability |

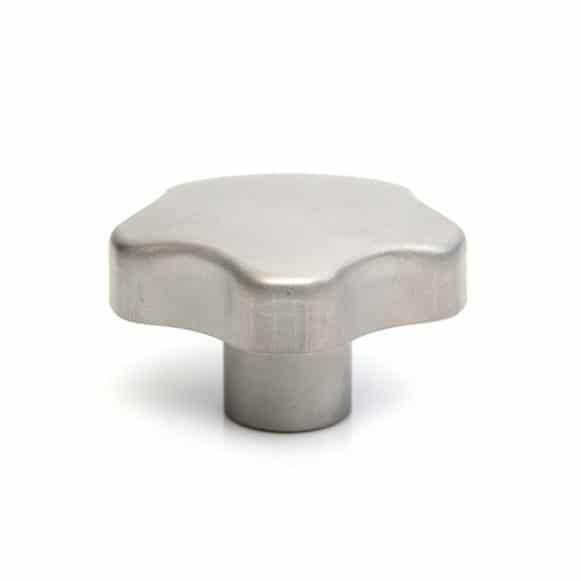

Female Threaded Metal Lobe Knob
Description

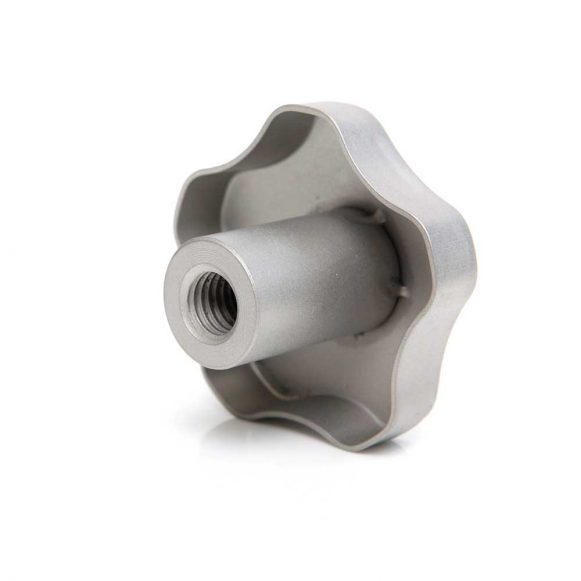

Our Model 02F MK comprises a pressed stainless steel lobe knob and a heavy duty threaded boss.
For many applications these stainless steel clamping knobs are an excellent compromise between weight, strength, and economy.
These knobs are less strong than our Model 01F MK — a fully solid stainless steel knob — but they weigh less and and are a reasonable alternative where low cost is a major driver. Our Model 01F MK have no cavities, making them better suited to clean environments.
Material
Pressed stainless steel spot welded stainless steel boss
Finish
Matt
Thread
Machined thread
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
