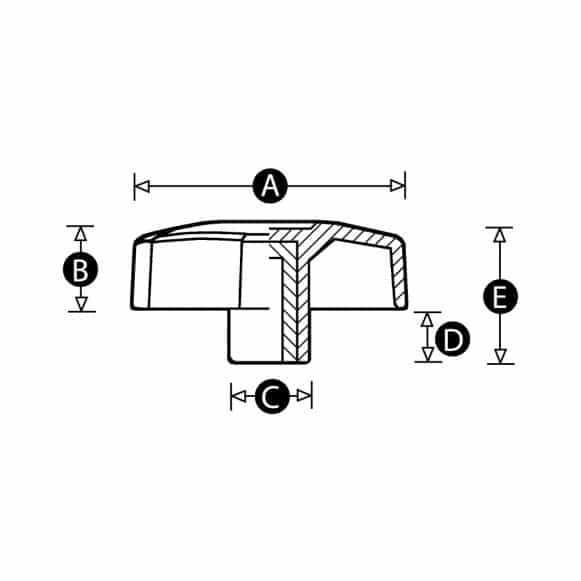

| Part No. | A | B | C | D | E | Thread size | Insert Material | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8991V | 28 | 11 | 12.5 | 6 | 17 | M5 | Brass | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 5086Y | 28 | 11 | 12.5 | 6 | 17 | M6 | Brass | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 5257S | 40 | 12 | 17 | 8 | 20 | M6 | Brass | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15150S | 40 | 12 | 17 | 8 | 20 | M6 | Zinc plated steel | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 8482W | 40 | 12 | 17 | 8 | 20 | M8 | Brass | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15151Z | 40 | 12 | 17 | 8 | 20 | M8 | Zinc plated steel | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 4842Y | 50 | 15 | 18 | 9 | 24 | M6 | Brass | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 6974P | 50 | 15 | 18 | 9 | 24 | M8 | Brass | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 4846P | 60 | 18 | 20 | 12 | 30 | M8 | Brass | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15158T | 60 | 18 | 20 | 12 | 30 | M8 | Zinc plated steel | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 8983U | 60 | 18 | 20 | 12 | 30 | M10 | Brass | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |

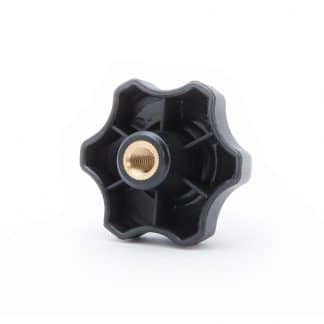

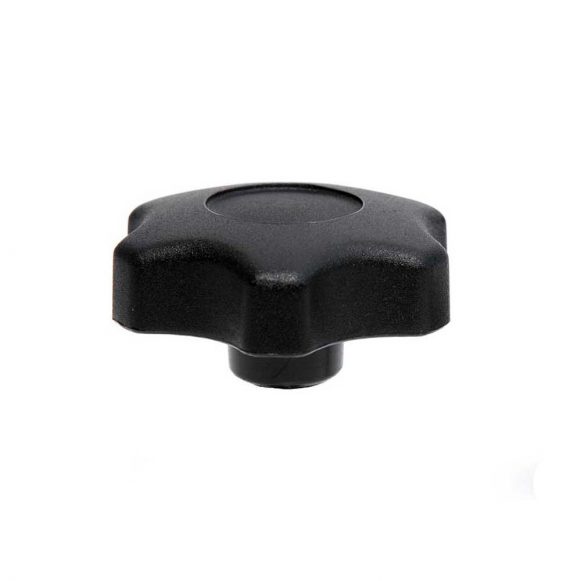

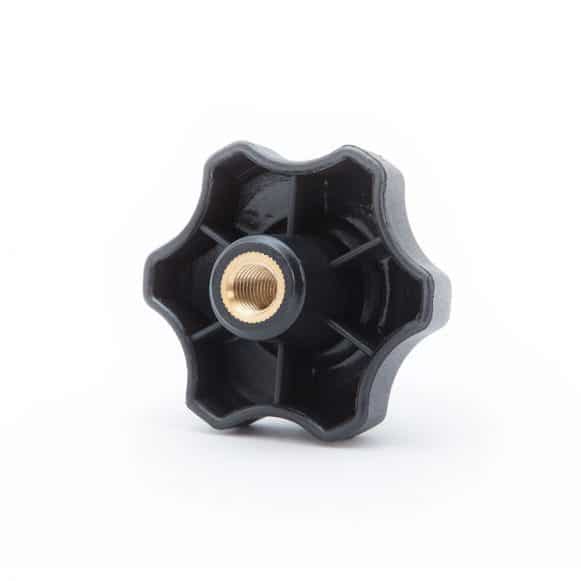

Female Threaded Lobe Knob
Description
The Model 05F PK comprises a black, matt finish, high impact resistant thermoplastic knob with a brass or zinc plated steel female insert. Most lobe knobs in our range have five lobes. The additional sixth lobe on this item improves grip and clamping ability, particularly where high clamping torque is required or where gloves are worn by the operator.

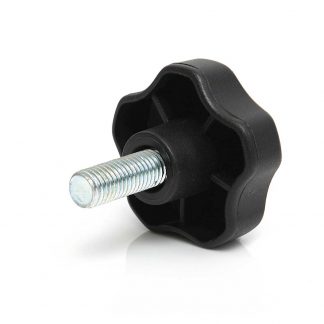

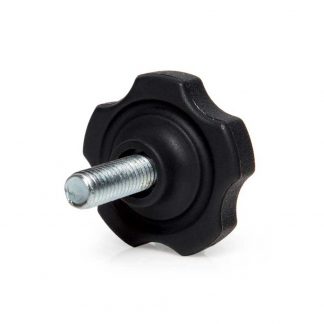

We also manufacture this item with a male threaded stud or through thread (or blind hole).
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Female insert material
Brass or zinc plated steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
