| Part No. | A | B | C | D | E | Thread size | Thread length (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5764P | 28 | 11 | 12.5 | 6 | 17 | M5 | 10 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 5743W | 28 | 11 | 12.5 | 6 | 17 | M5 | 15 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 5750Y | 28 | 11 | 12.5 | 6 | 17 | M5 | 20 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 5771Q | 28 | 11 | 12.5 | 6 | 17 | M6 | 10 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 5779S | 28 | 11 | 12.5 | 6 | 17 | M6 | 15 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 5757X | 28 | 11 | 12.5 | 6 | 17 | M6 | 20 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 4778T | 40 | 12 | 17 | 8 | 20 | M6 | 15 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15152V | 40 | 12 | 17 | 8 | 20 | M6 | 20 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 4780R | 40 | 12 | 17 | 8 | 20 | M6 | 25 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15153R | 40 | 12 | 17 | 8 | 20 | M6 | 35 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15154Y | 40 | 12 | 17 | 8 | 20 | M8 | 15 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15155U | 40 | 12 | 17 | 8 | 20 | M8 | 20 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15156Q | 40 | 12 | 17 | 8 | 20 | M8 | 25 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15157X | 40 | 12 | 17 | 8 | 20 | M8 | 35 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 4786Y | 50 | 15 | 18 | 9 | 24 | M6 | 20 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 4787Q | 50 | 15 | 18 | 9 | 24 | M6 | 25 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 4788T | 50 | 15 | 18 | 9 | 24 | M6 | 35 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 4790R | 50 | 15 | 18 | 9 | 24 | M8 | 20 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 7625S | 50 | 15 | 18 | 9 | 24 | M8 | 30 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 4792X | 50 | 15 | 18 | 9 | 24 | M8 | 35 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 4793P | 50 | 15 | 18 | 9 | 24 | M8 | 40 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15159P | 60 | 18 | 20 | 12 | 30 | M8 | 20 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15449V | 60 | 18 | 20 | 12 | 30 | M8 | 25 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 4795V | 60 | 18 | 20 | 12 | 30 | M8 | 30 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15160W | 60 | 18 | 20 | 12 | 30 | M8 | 40 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 4798T | 60 | 18 | 20 | 12 | 30 | M10 | 30 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 4799W | 60 | 18 | 20 | 12 | 30 | M10 | 40 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |

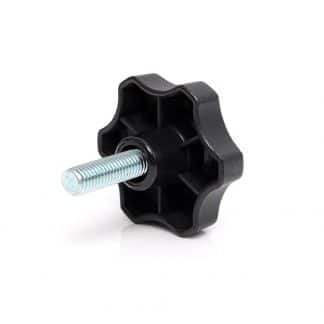

Male Threaded Lobe Knob
Description
The Model 05M PK comprises a black, matt finish, high impact resistant thermoplastic knob with a zinc plated steel male threaded stud. Most lobe knobs in our range have five lobes. The additional sixth lobe on this item improves grip and clamping ability, particularly where high clamping torque is required or where gloves are worn by the operator.
We also manufacture this item with a female threaded insert or through thread (or blind hole).
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Male thread material
Zinc plated steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
