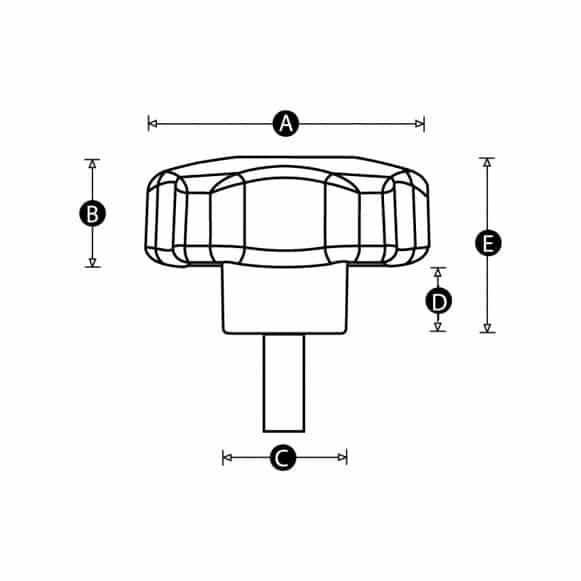

Part No. | A | B | C | D | E | Thread size | Thread length (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|
10782S | 28 | 16 | 12 | 10 | 26 | M5 | 10 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
10783Z | 28 | 16 | 12 | 10 | 26 | M5 | 15 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
10784V | 28 | 16 | 12 | 10 | 26 | M5 | 20 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
10786Y | 28 | 16 | 12 | 10 | 26 | M6 | 15 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
10787U | 28 | 16 | 12 | 10 | 26 | M6 | 20 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
11169V | 40 | 17 | 18 | 12 | 29 | M6 | 20 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
10793S | 40 | 17 | 18 | 12 | 29 | M6 | 25 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
11170R | 40 | 17 | 18 | 12 | 29 | M8 | 15 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
10795V | 40 | 17 | 18 | 12 | 29 | M8 | 16 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
10796R | 40 | 17 | 18 | 12 | 29 | M8 | 25 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
10797Y | 40 | 17 | 18 | 12 | 29 | M8 | 35 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
10804S | 50 | 19 | 21 | 12 | 31 | M6 | 35 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
11172U | 50 | 19 | 21 | 12 | 31 | M8 | 25 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
10807R | 50 | 19 | 21 | 12 | 31 | M8 | 35 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
10808Y | 50 | 19 | 21 | 12 | 31 | M8 | 40 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
11173Q | 50 | 19 | 21 | 12 | 31 | M10 | 25 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
11175T | 50 | 19 | 21 | 12 | 31 | M10 | 40 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
10814W | 60 | 21 | 23 | 13 | 34 | M8 | 20 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
10815S | 60 | 21 | 23 | 13 | 34 | M8 | 30 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
10818R | 60 | 21 | 23 | 13 | 34 | M10 | 30 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
11178S | 60 | 21 | 23 | 13 | 34 | M12 | 40 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |

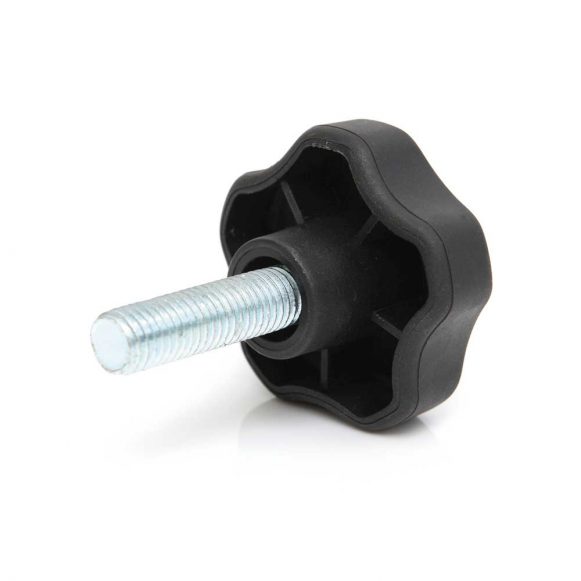

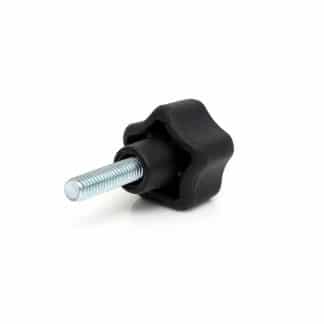

Male Threaded Soft Touch Lobe Knob
Description
Our Model 01M PK comprises a strong polypropylene lobe knob core, over moulded with ’Soft Touch’ TPE and a zinc plated steel male threaded shaft. This combination provides exceptional strength, durability, grip, comfort, and resistance to mineral oils.
These clamping knobs are particularly beneficial in applications where the operator requires superior grip, such as wet or oily environments, or where a clamping operation is performed frequently and the operator will benefit from the extra comfort of a soft TPE over mould. Common applications include pharmaceutical equipment, medical furniture, photography tripods and processing and packaging lines.

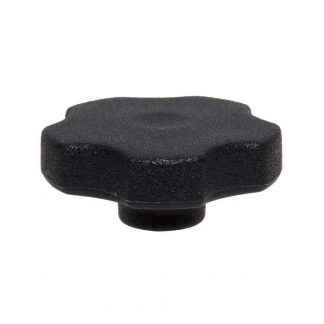

We also manufacture this item with a brass female insert or through thread (or blind hole).
Material
Two-part mouldings – Inner moulding Polypropylene – Over moulded with ‘Soft Touch’ TPE
Male thread material
Zinc plated steel
Standard colour
Black
Cap colours
Available with caps in many different colours (MOQs apply).
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
