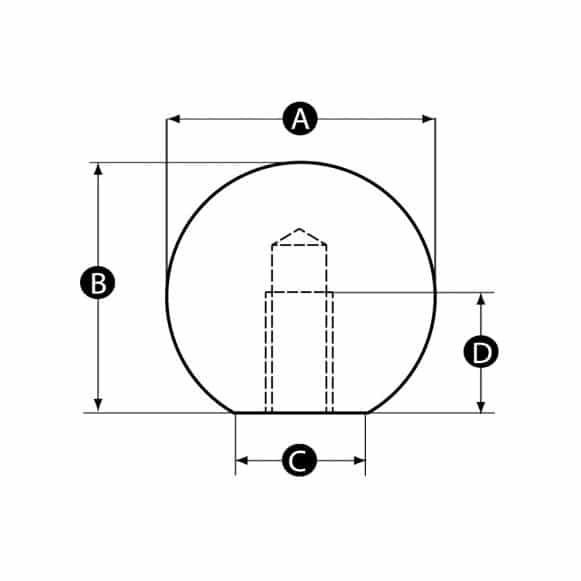

| Part No. | A | B | C | D | Thread size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|
| 15340R | 16 | 15 | 8 | 7 | M4 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15341Y | 16 | 15 | 8 | 7 | M5 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15342U | 16 | 15 | 8 | 7 | M6 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15343Q | 20 | 18 | 12 | 9 | M4 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15344X | 20 | 18 | 12 | 9 | M5 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15345T | 20 | 18 | 12 | 9 | M6 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15346P | 25 | 23 | 15 | 11 | M6 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15347W | 25 | 23 | 15 | 11 | M8 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15348S | 25 | 23 | 15 | 11 | M10 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15349Z | 32 | 29 | 18 | 15 | M6 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15350V | 32 | 29 | 18 | 15 | M8 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15351R | 32 | 29 | 18 | 15 | M10 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15352Y | 38 | 35 | 22 | 18 | M6 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15353U | 38 | 35 | 22 | 18 | M8 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15354Q | 38 | 35 | 22 | 18 | M10 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15355X | 44 | 37 | 32 | 20 | M10 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15356T | 50 | 46 | 28 | 21 | M10 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |

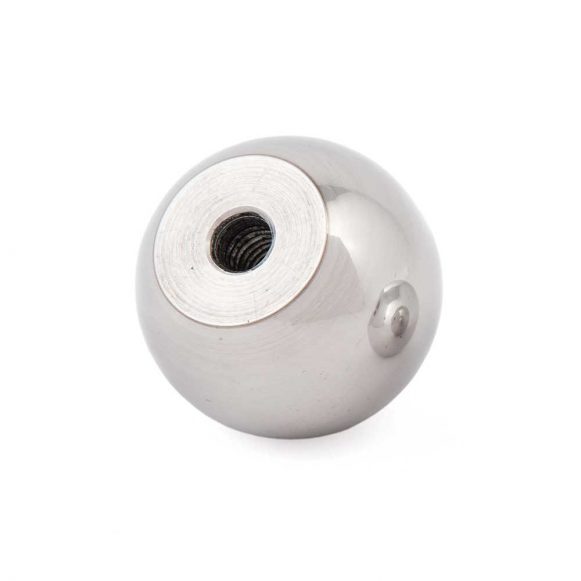

Female Threaded Polished Aluminium Ball Knob
Description
Our Model 08F MK is a solid, highly polished aluminium ball knob with a machined metric thread. These aluminium ball knobs are strong, durable and ideal low-weight alternatives to our stainless steel ball knobs. These ball knobs are often chosen for their aesthetic qualities as a high quality finishing touch for high-end product lines.
We also manufacture this aluminium ball knob with a plain shaft for push-fit assembly.
Material
Aluminium
Finish
Highly polished
Thread
Machined thread
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
