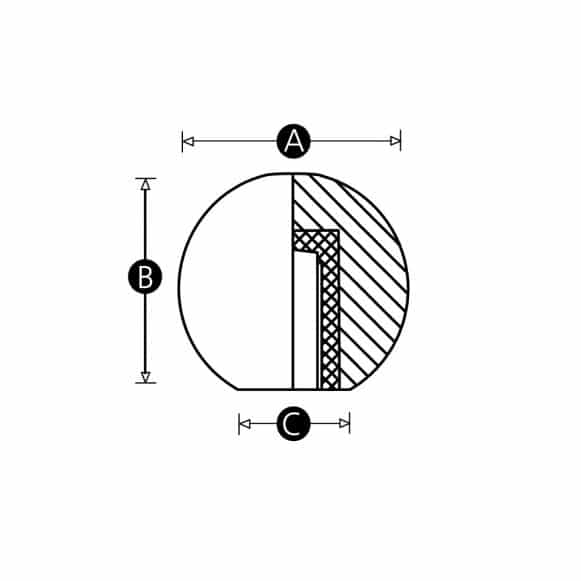

Part No. | A | B | C | Thread size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|
9985Q | 25 | 23 | 13 | M6 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
9984U | 25 | 23 | 13 | M8 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
9983Y | 32 | 30 | 14 | M6 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
9898X | 32 | 30 | 14 | M8 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
9982R | 38 | 36 | 18 | M8 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
9981V | 38 | 36 | 18 | M10 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |

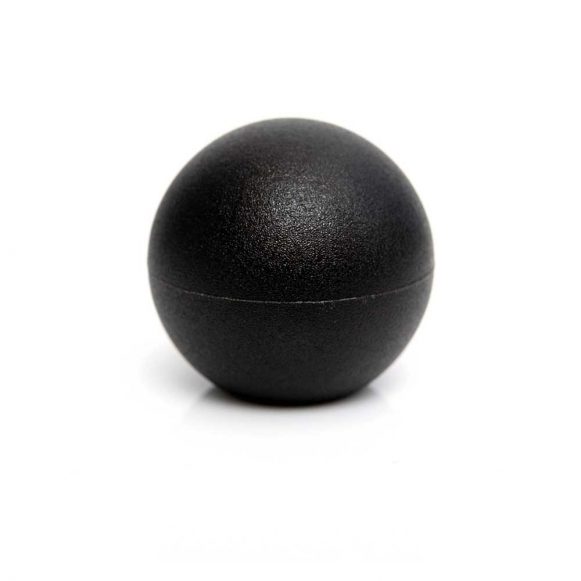

Female Threaded Metal Insert Ball Knob
Description
Our Model 18 BF is injection moulded from high impact resistant thermoplastic resulting in a lightweight, strong and durable thermoplastic ball knob. The brass threaded insert is strong and has high resistance to oil, solvents and chemicals. Less demanding environments may benefit from a more cost effective moulded insert as found in our Model 18 AF.
A matt finish gives excellent grip and feel in the hand.
As standard these are supplied in black although many other RAL colours are available, subject to minimum order quantities.
Material
High impact resistant thermoplastic
Standard colour
Black. Other RAL colours on request (MOQs apply).
Finish
Matt finish
Female insert material
Brass
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
