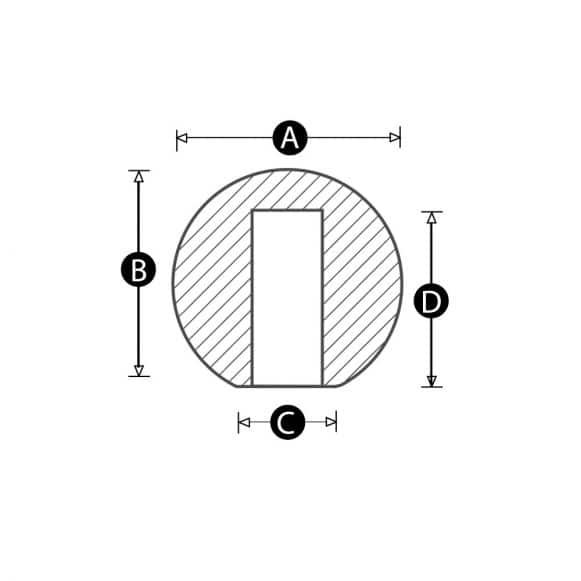

Part No. | A | B | C | D | Shaft Type | To fit shaft Diam (H9) mm | To fit shaft Diam (H9) in | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|
14291W | 20 | 19 | 10 | 15 | Plain | 5 | 3/16 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
9977P | 25 | 23 | 13 | 17 | Plain | 6 | 1/4 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
9943T | 25 | 23 | 13 | 17 | Plain | 8 | 5/16 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
9899T | 32 | 30 | 14 | 24 | Plain | 8 | 5/16 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
9978W | 32 | 30 | 14 | 24 | Plain | 10 | 3/8 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
9979S | 38 | 36 | 18 | 27 | Plain | 10 | 3/8 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
9980Z | 38 | 36 | 18 | 27 | Plain | 12 | 1/2 | CAD | Stocked | Minimum order 50 pieces | Typical lead time is 2 days | Confirm price & availability |
14292S | 50 | 49 | 19 | 40 | Plain | 12 | 1/2 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |

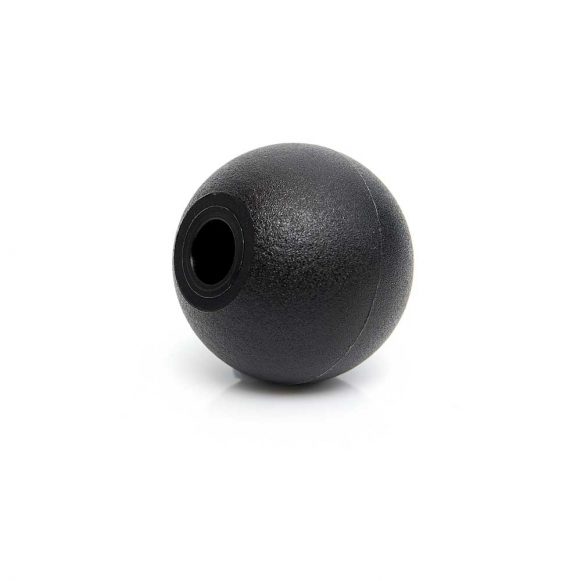

Female Threaded Push-Fit Ball Knob
Description
Our Model 19 AF is injection moulded from high impact resistant thermoplastic resulting in a lightweight, strong and durable thermoplastic ball knob. A slightly tapered cylindrically shaped hole provides a simple but reliable push-fit assembly onto metric and imperial diameter shafts. For demanding applications (and where a plain shaft is still preferred) our Model 20 AF push fit knobs are supplied with a tolerance ring which will withstand higher pull-off forces.
As standard these are supplied in black although many other RAL colours are available, subject to minimum order quantities.
Material
High impact resistant thermoplastic
Standard colour
Black. Other RAL colours on request (MOQs apply).
Finish
Matt finish
Bore
Push-fit assembly
Shaft diameter
Imperial and metric sizes
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
