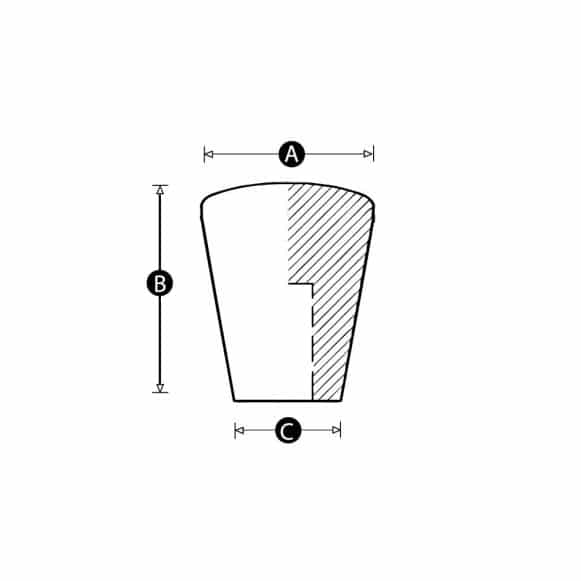

Part No. | A | B | C | To fit shaft mm (H9) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|
3029U | 22 | 30 | 12 | 6 | CAD | Made to order | Minimum order 300 pieces | Typical lead time is 16 weeks | Confirm price & availability |
1552S | 28 | 35 | 18 | 8 | CAD | Made to order | Minimum order 300 pieces | Typical lead time is 16 weeks | Confirm price & availability |
1564P | 35 | 44 | 22 | 10 | CAD | Made to order | Minimum order 300 pieces | Typical lead time is 16 weeks | Confirm price & availability |
Self Fixing Taper Knob
Description
These plastic conical taper knobs are typically mounted to the plain metal shaft on a lever. Common applications include lathes, litho printing press, fork lifts and construction machinery.
The gloss finish, Duroplast material is strong, durable and resistant to oils and solvents commonly found in industrial settings.
We also manufacture this taper knob with a female thread.
Material
Duroplast
Standard colour
Black
Finish
Gloss finish
Bore
Push-fit assembly with tolerance ring
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
