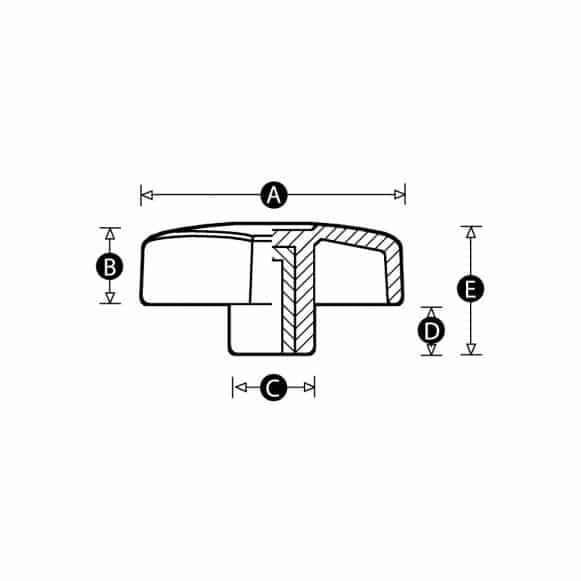

| Part No. | A | B | C | D | E | Thread size | Insert Material | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8973Q | 28 | 11 | 11 | 6 | 17 | M5 | Brass | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 4 weeks | Confirm price & availability |
| 5096Y | 28 | 11 | 11 | 6 | 17 | M6 | Brass | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 8977W | 40 | 12 | 15 | 8 | 20 | M6 | Brass | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15161S | 40 | 12 | 15 | 8 | 20 | M6 | Zinc plated steel | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 8958V | 40 | 12 | 15 | 8 | 20 | M8 | Brass | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15162Z | 40 | 12 | 15 | 8 | 20 | M8 | Zinc plated steel | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 4818U | 50 | 15 | 15 | 9 | 24 | M6 | Brass | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 2 days | Confirm price & availability |
| 8969V | 50 | 15 | 15 | 9 | 24 | M8 | Brass | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 2 days | Confirm price & availability |
| 4822Y | 60 | 18 | 19 | 12 | 30 | M8 | Brass | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15169T | 60 | 18 | 19 | 12 | 30 | M8 | Zinc plated steel | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 8965P | 60 | 18 | 19 | 12 | 30 | M10 | Brass | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |

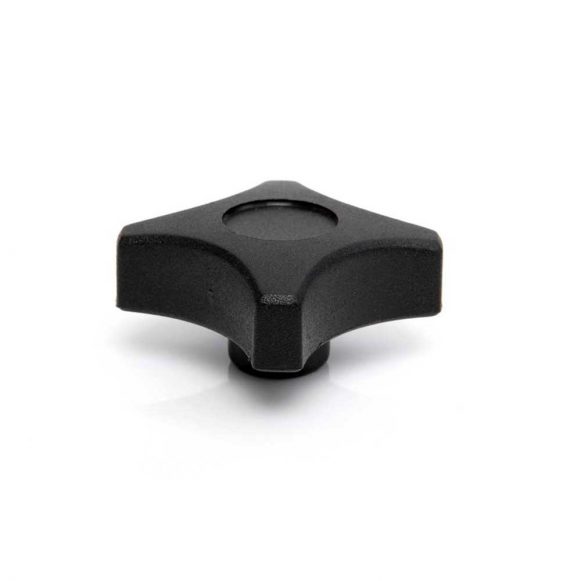

Female Threaded Star Knob
Description
Our Model 12F PK four-winged star knob is another long-standing, classic shape from our extensive range of hand knobs. These star knobs are designed for a comfortable three finger and thumb grip. The star shape is optimised for clamping and locking, as commonly required on photographic tripods, lighting stands and point-of-sale furniture.
The high impact resistant thermoplastic knob and choice of brass or zinc plated steel female insert make for a strong, low weight and durable combination.
Our Model 10F PK shares a similar design but with three wings.
We also manufacture this item with a male threaded stud or through thread (otherwise known as blind hole).
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Female insert material
Brass or zinc plated steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
