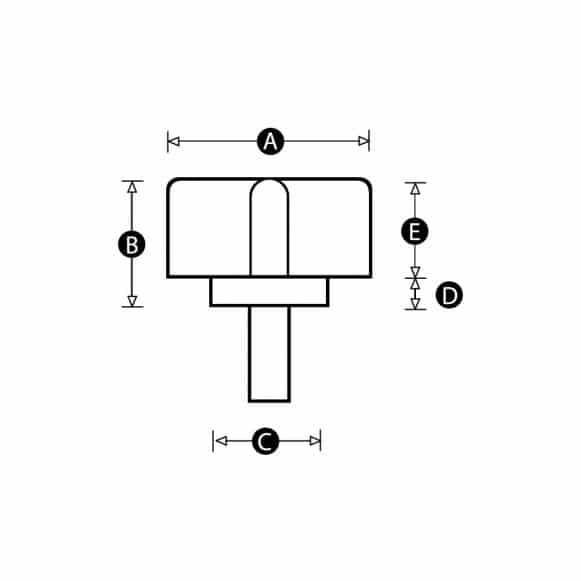

| Part No. | A | B | C | D | E | Thread size | Thread length (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7143V | 21 | 14 | 11 | 4 | 10 | M5 | 10 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 8760V | 21 | 14 | 11 | 4 | 10 | M5 | 20 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 2736T | 21 | 14 | 11 | 4 | 10 | M6 | 10 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 5069W | 21 | 14 | 11 | 4 | 10 | M6 | 20 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |

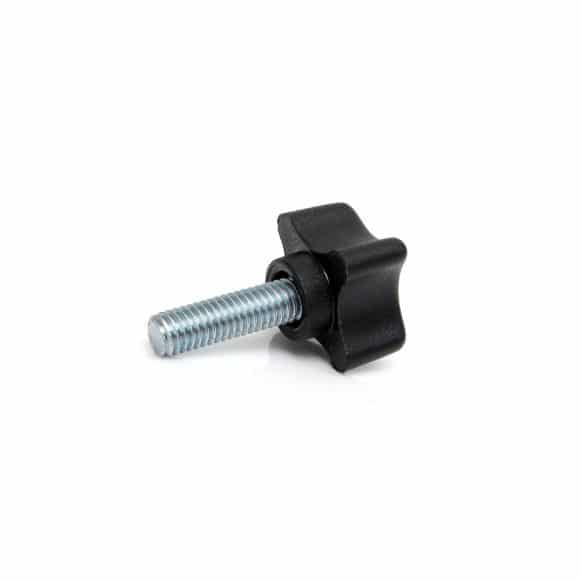

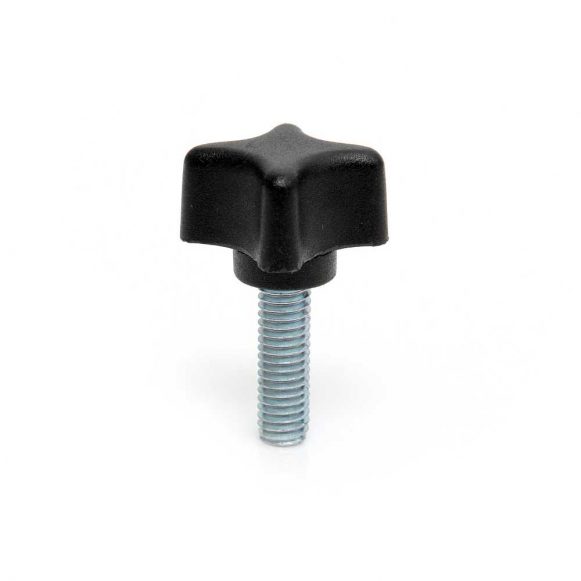

Male Threaded Mini-Star Knob
Description
Our Model 14M PK male threaded mini star knob is designed for low duty clamping and adjustment operations where space or access is a prime consideration.
The four winged star shape is comfortable for a one or two finger and thumb operation.
The matt black, high impact resistant thermoplastic knob and zinc plated steel construction is durable and strong.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Male thread material
Zinc plated steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
