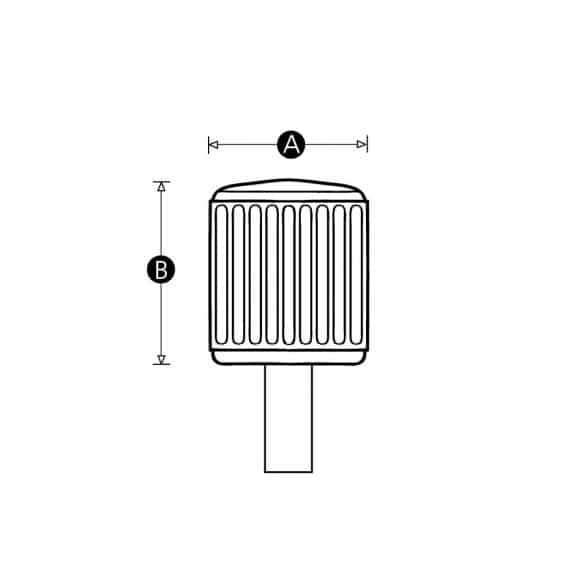

Part No. | A | B | Thread size | Thread length (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|
1155W | 15 | 16 | M4 | 10 | CAD | Yes | 10 | Typical lead time is 2 days | Confirm price & availability |
1156S | 15 | 16 | M5 | 10 | CAD | No | 500 | Typical lead time is 16 weeks | Confirm price & availability |
9402Q | 15 | 16 | M5 | 20 | CAD | Yes | 10 | Typical lead time is 2 days | Confirm price & availability |
7153Z | 15 | 16 | M6 | 10 | CAD | No | 500 | Typical lead time is 16 weeks | Confirm price & availability |
9316T | 15 | 16 | M6 | 15 | CAD | Yes | 10 | Typical lead time is 2 days | Confirm price & availability |
7149T | 20 | 22 | M5 | 15 | CAD | No | 500 | Typical lead time is 16 weeks | Confirm price & availability |
1159R | 20 | 22 | M6 | 15 | CAD | No | 500 | Typical lead time is 16 weeks | Confirm price & availability |
1161U | 20 | 22 | M6 | 25 | CAD | No | 500 | Typical lead time is 16 weeks | Confirm price & availability |
2699Y | 25 | 34 | M6 | 25 | CAD | No | 500 | Typical lead time is 16 weeks | Confirm price & availability |
7151W | 25 | 34 | M8 | 25 | CAD | No | 500 | Typical lead time is 16 weeks | Confirm price & availability |

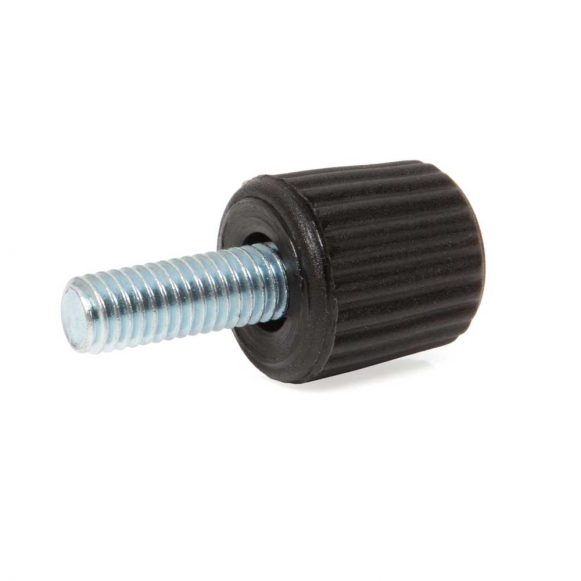

Male Threaded Thumbscrew Knob
Description
Our Model 25M PK is a knurled plastic thumbscrew with a tapered profile. The tall, tapered and knurled profile gives excellent grip for turning and fine adjustment.
The thermoplastic and zinc plated steel threaded stud provides excellent strength, durability and resistance to oils, solvents, cleaning products and variations in heat.
We also manufacture this thumbscrew with a female brass threaded insert.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Male thread material
Zinc plated steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
