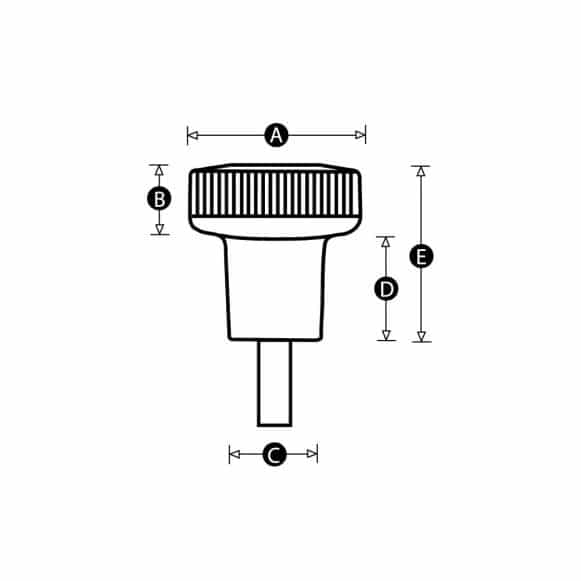

Part No. | A | B | C | D | E | Thread size | Thread length (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|
15721W | 20 | 9 | 14 | 10 | 20 | M4 | 10 | CAD | Stocked | Minimum order is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
15722S | 20 | 9 | 14 | 10 | 20 | M5 | 16 | CAD | Stocked | Minimum order is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
15723Z | 25 | 10 | 17 | 15 | 25 | M6 | 16 | CAD | Stocked | Minimum order is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
15724V | 25 | 10 | 17 | 15 | 25 | M8 | 25 | CAD | Stocked | Minimum order is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
15725R | 30 | 11 | 18 | 19 | 30 | M8 | 20 | CAD | Stocked | Minimum order is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
15726Y | 30 | 11 | 18 | 19 | 30 | M10 | 30 | CAD | Stocked | Minimum order is 10 pieces | Typical lead time is 2 days | Confirm price & availability |

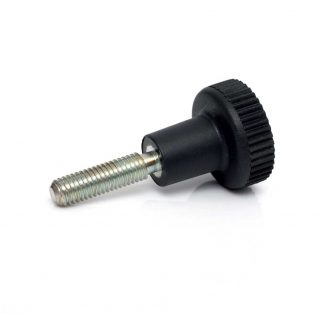

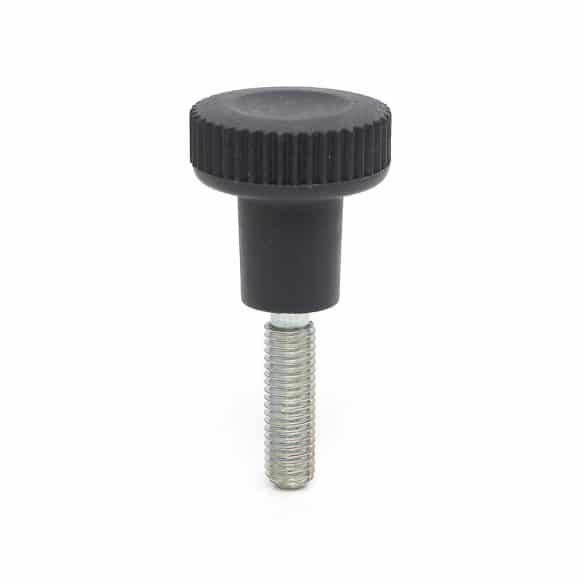

Male Threaded Thumbscrew Knob
Description
Our Model 26M PK features knurled edges, a recessed underside, and a dimple on the top section. The knurled edges provide rotational grip where the knob is used to adjust, or clamp. The recessed underside and dimpled top provide grip where the knob is pulled or pushed.
The thermoplastic knob and zinc plated steel threaded stud provides excellent strength, durability and resistance to oils, solvents, cleaning products and variations in heat.

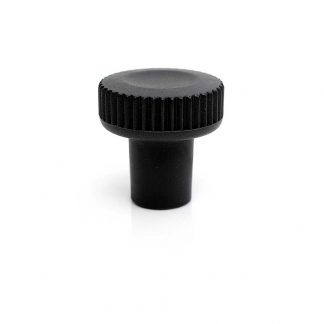

We also manufacture this thumbscrew with a female brass threaded insert.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Male thread material
Zinc plated steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
