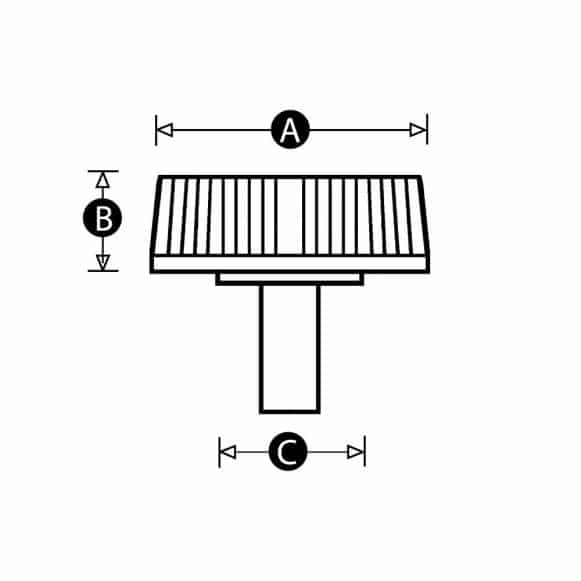

| Part No. | A | B | C | D | Thread size | Thread length (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7135U | 21 | 9 | 10 | 2 | M5 | 10 | CAD | Yes | 5 | Typical lead time is 2 days | Confirm price & availability |
| 7133R | 21 | 9 | 10 | 2 | M5 | 20 | CAD | No | 500 | Typical lead time is 16 weeks | Confirm price & availability |
| 4725V | 21 | 9 | 10 | 2 | M6 | 15 | CAD | No | 500 | Typical lead time is 16 weeks | Confirm price & availability |
| 7131Z | 21 | 9 | 10 | 2 | M6 | 20 | CAD | No | 500 | Typical lead time is 16 weeks | Confirm price & availability |
Male Threaded Thumbscrew Knob
Description

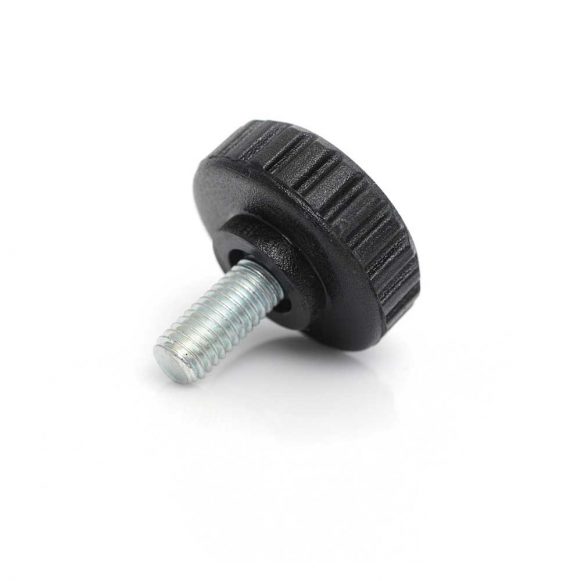

Our Model 28M PK is a low profile knurled thumbscrew knob. The matt black, high impact resistant thermoplastic knob is mated to a zinc plated steel male threaded stud.
We offer 4 variations with thread sizes from M5 x 10mm up to M6 x 20mm.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Male thread material
Zinc plated steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
