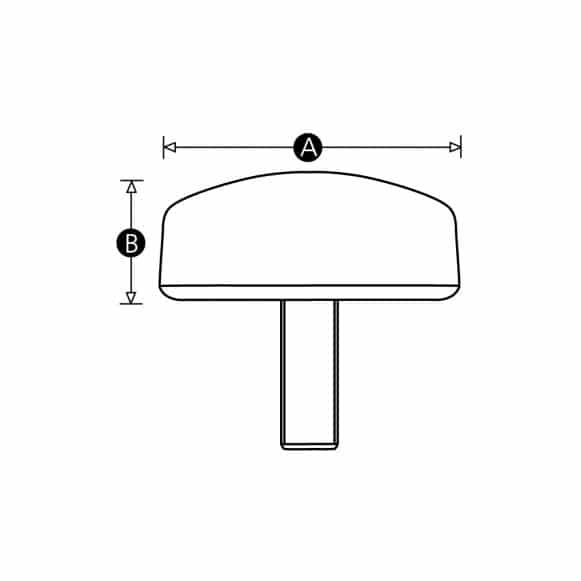

Part No. | A | B | Thread size | Thread length (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|
10606S | 26 | 13 | M5 | 10 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
10607Z | 26 | 13 | M5 | 16 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
11138Y | 26 | 13 | M6 | 16 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
10609R | 32 | 15 | M6 | 10 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
10610Y | 32 | 15 | M6 | 16 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
10611U | 32 | 15 | M6 | 20 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
10616W | 32 | 15 | M6 | 25 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
10613X | 40 | 17 | M8 | 16 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
10614T | 40 | 17 | M8 | 25 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |

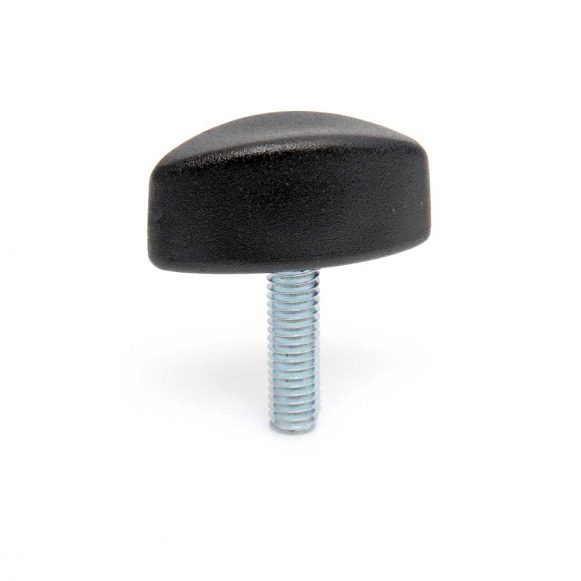

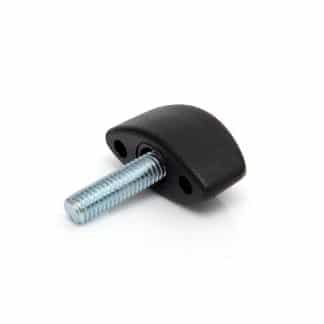

Male Threaded Wing Knob
Description
The Model 09M PK comprises a matt finish, high impact resistant thermoplastic knob with zinc plated steel male threaded stud. These wing knobs are a solid moulding, with a low profile, discreet and ergonomic shape.
These wing knobs are commonly used in combination with a collar to clamp telescopic shafts on tripods, stands, lighting equipment, disability aids and medical equipment.
We also manufacture these wing knobs with a female threaded insert.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Male thread material
Zinc plated steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
